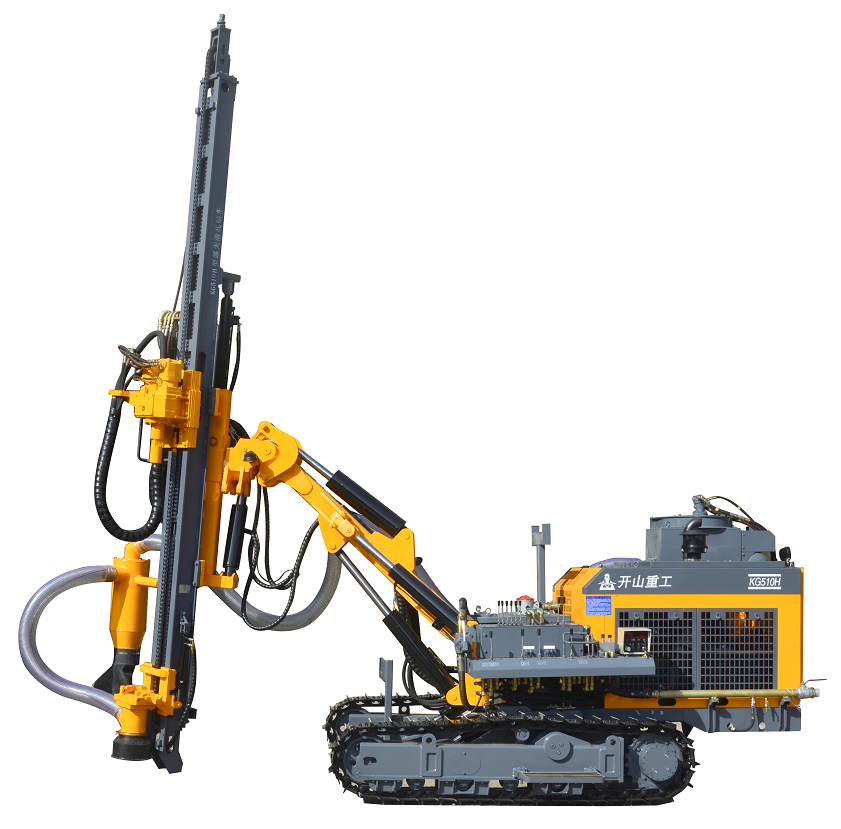

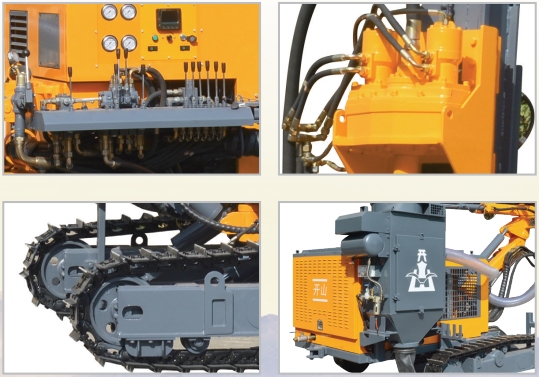

The KG510/KG510H DTH surface drill rig for open use is one of our new and improved pieces of equipment used for mining exploration on diesel-engine emissions. Equipped with a Yuchai four-cylinder engine (China III), the drill rig meets all relevant national standards for emissions and environmental impact. The folding frame track and four-wheel drive combine with track leveling and a plunger piston walking motor improve the working pressure and climbing capacity of the unit.
The KG510H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.
Brief Parameters
Drilling diameter: Φ105-152mm
Depth of economical drilling: 25m
Method of Feed: Oil cylinder-leaf chain
Feed stroke: 3000mm
Supporting power: Yuchai YC4DK80-T302(58KW/2200r/min)
Parameter
Technical Parameters
| Model of drill rig | KG510 | KG510H |
| Weight of complete machine | 6500KG | 7000KG |
| Outer dimensions | 6800×2200×2850mm | 6800×2450×2850mm |
| Drilling Hardness | f=6-20 |
| Drilling diameter | Φ105-152mm |
| Depth of economical drilling | 25m |
| Rotary speed | 0-100rpm |
| Rotary torque | 3500N·m |
| Lifting force | 40KN |
| Method of Feed | Oil cylinder-leaf chain |
| Feed strock | 3000mm |
| Travelling speed | 0-3.5km/h |
| Climbing capacity | ≤30° |
| Ground clearance | 440mm |
| Tilt angle of boom | Down: 135°, up: 50°, total: 185° |
| Swing angle of boom | Left: 50°, right: 50°, total: 100° |
| Pitch angle of drill boom | Down: 50°, up: 25°, total: 75° |
| Swing angle of drill boom | Left: 45°, right: 45°, total: 90° |
| Leveling angle of track | ±10° |
| Compensation length of beam | 900mm |
| Supporting power | YC4DK80-T302(58KW/2200r/min）/Yuchai YC4DK80-T302(58KW/2200r/min) |
| DTH hammer | K4 |
| Drilling rod | Φ76×3m或Φ89×3m/Φ76×3m or Φ89×3m |
| Air consumption | 13-22m3/min |
| Maximum height of horizontal hole | 3700mm |
| Minimum height of horizontal hole | 350mm |
