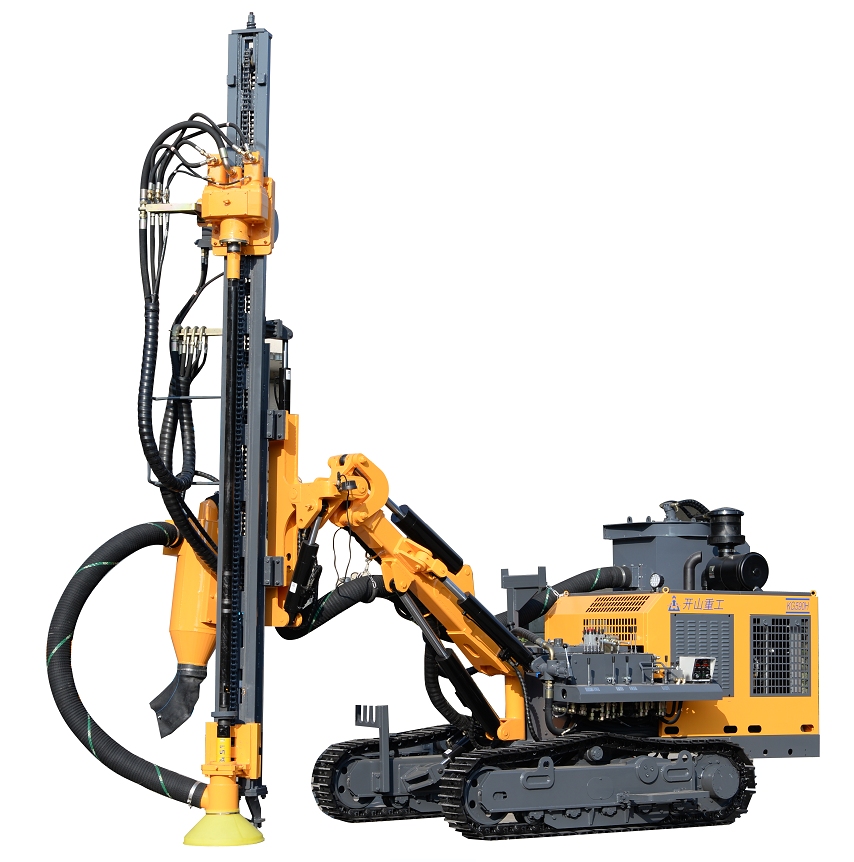

The KG9 down the hole drill rig is designed for open pit mines and quarries for drilling holes with a diameter of Φ105－152mm in vertical, inclined, and horizontal orientation. This equipment is primarily applied for open-pit mines, stonework blast holes, and pre-splitting holes. The drill rig is outfitted with an automatic unloading road system and a lubricating module drill rod and can be operated by a single worker. With hydraulic pilot operation, it is equipped with an anti-jamming system and optional drilling angle and depth indication functions to maximize drilling quality. The efficient dust-collecting system, spacious cab, high powered air-conditioner and quality stereo system provide comfortable and safe conditions for the operator for long work days and nights
Brief Parameter of KG9 down the hole drill rig Rock drill rig
Drilling diameter: Φ105-152mm
Depth of economical drilling: 32m
Feed stroke: 4090mm
Method of Feed: Oil cylinder-leaf chain
Supporting power: YUCHAI YC6B125-K20(92KW)
Good hydraulic system of KG9 down the hole drill rig Rock drill rig
KG9 down the hole drill rig Rock drill rig has the Steel track adaptable to all terrains
automatic rod handling system
spacious cab, high-powered air-conditioner and quality stereo system which provide ideal conditions for operations
Parameter
Parameters of KG9 down the hole drill rig mining rock drill rig
| Drilling method | High air-pressure submerged drilling |
| Drilling hardness | f=6-20 |
| Drilling diameter | 105-152 mm |
| Working pressure | 1.0-2.5 Mpa |
| Air consumption | 15-21 m3/min |
| Depth of automatic extension rod | 32 m |
| Travelling speed | 2.5 Km/h |
| Stand-alone climbing capacity | 30° |
| Ground clearance | 430 mm |
| Power of complete machine | 92 Kw |
| Model of diesel engine | YC6B125-K20 |
| Outer dimensions (L×W×H) | 9000×2500×3100 mm |
| Weight | 10000 kg |
| Rotation speed of gyrator | 0-100 r/min |
| Rotary torque | 3500 N*m |
| Maximum push-pull force | 20000 N |
| Tilt angle of beam | 114° |
| Pitch of drill boom | -20 °～ +47° |
| Lateral horizontal swing angle of carriage | -35°～ +95° |
| Swing angle of drill boom | -5°～ +45° |
| Leveling angle of frame | -10°～ +10° |
| One-time advance length | 4490 mm |
| Compensation length | 1353 mm |
| DTH Hammer | K4、K5 |
| Drilling rod | Φ89×4000 mm |
| Method of dust collecting | Dry type (cyclonic laminar flow + pre-separator) |
| Anti-jamming device | Automatic control anti-sticking system |
| Jamming device | Hydraulic jamming device |
| Unloading method of drill rod | Disc-type unloading rod system |
| Cab | ROPS&FOPS with air-conditioner |
Applications
The KG9 down the hole drill rig is designed for open pit mines and quarries for drilling holes with a diameter of Φ105－152mm in vertical, inclined, and horizontal orientation. This equipment is primarily applied for open-pit mines, stonework blast holes, and pre-splitting holes.
