KG610 Surface DTH Drill Rig Rock Blasting Drilling Rig

Item No.:
Payment:
Product Origin:
Color:
Shipping Port:
Min Order:
Lead Time:

Contact now

Description

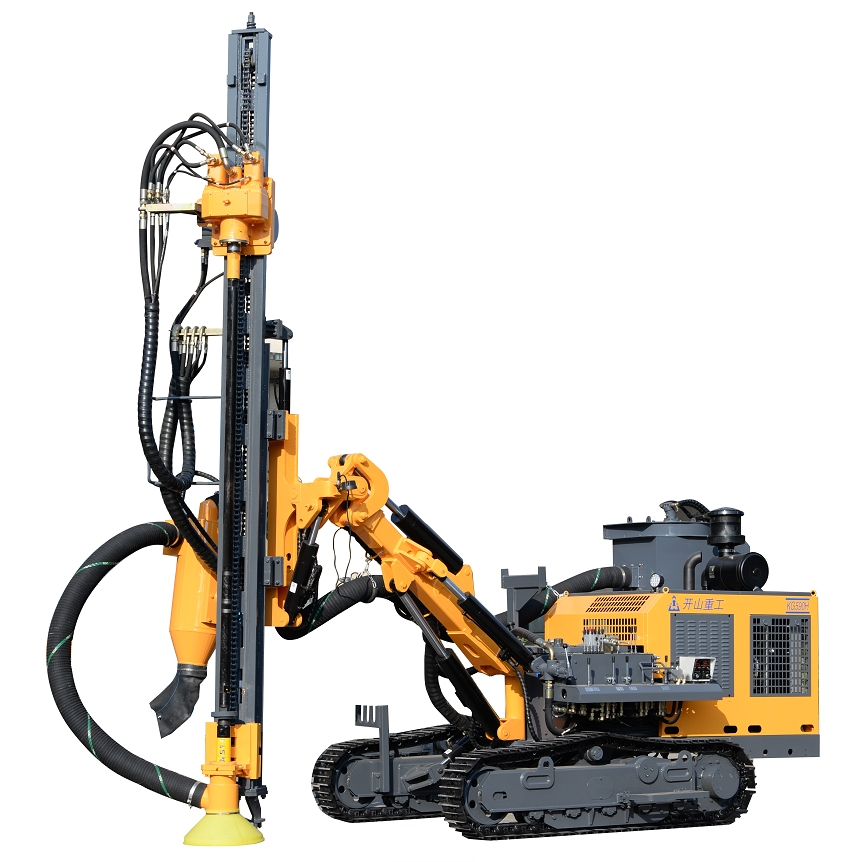

The KG610/KG610H surface down the hole drill rig is used for open pit mining and quarrying projects. The rig adopts a folding frame track and four-wheel drive. Track leveling and a plunger piston walking motor improves the working pressure and climbing capacity of the machine. The expanded pitch and lifting-arm hydraulic cylinder allow it to meet the limiting position requirements. A double-motor is installed to raise the rotary toque and revolving speed. The hydraulic cylinder and chain are expanded to raise the lifting force and reliability. The dust collector is enlarged to increase the effectiveness of the unit. A thickened profile folder is used for the housing, improving its intensity and rigidity. The additional ring makes handling and lifting more convenient.

The KG610H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Brief Parameters
Drilling diameter Φ105-202mm
Depth of economical drilling 40m
Feed stroke 4010mm
Method of Feed ：Oil cylinder-leaf chain
Supporting power ： Cummins QSB3.9-C125(92KW/2200r/min)

Zhengzhou Kaishan Mechanical&Electrical Equipment Co.,LTD.

Parameter

Technical Parameters

Model of drill rig	KG610	KG610H
Weight of complete machine	7100KG	7600KG
Outer dimensions	6700×2250×2850mm	6700×2800×2850mm
Drilling hardness	f=6-20
Drilling diameter	Φ105-202mm
Depth of economical drilling	40m
Rotary speed	0-110rpm
Rotary torque	5000N·m
Lifting force	25KN
Method of Feed	Oil cylinder-leaf chain
Feed stroke	3000mm
Travelling speed	0-4km/h
Climbing capacity	≤30°
Ground clearance	440mm
Tilt angle of beam	Down:135°, up: 50°, total: 185° /Down:135°, up: 50°, total: 185°
Swing angle of beam	Left: 40°, right: 40°, total: 80° /Left: 40°, right: 40°, total: 80°
Pitch angle of drill boom	Down: 55°, up: 25°, total: 80° /Down: 55°, up: 25°, total: 80°
Swing angle of drill boom	Left: 45°, right: 45°, total: 90° /Left: 45°, right: 45°, total: 90°
Leveling angle of track	±8°
Compensation length of beam	1200mm
Supporting power	QSB3.9-C125(92KW/2200r/min)/Cummins QSB3.9-C125(92KW/2200r/min)
DTH hammer	K50
Drilling rod	Φ89×3m
Air consumption	15-26m3/min
Maximum height of horizontal hole	2850mm
Minimum height of horizontal hole	500mm
