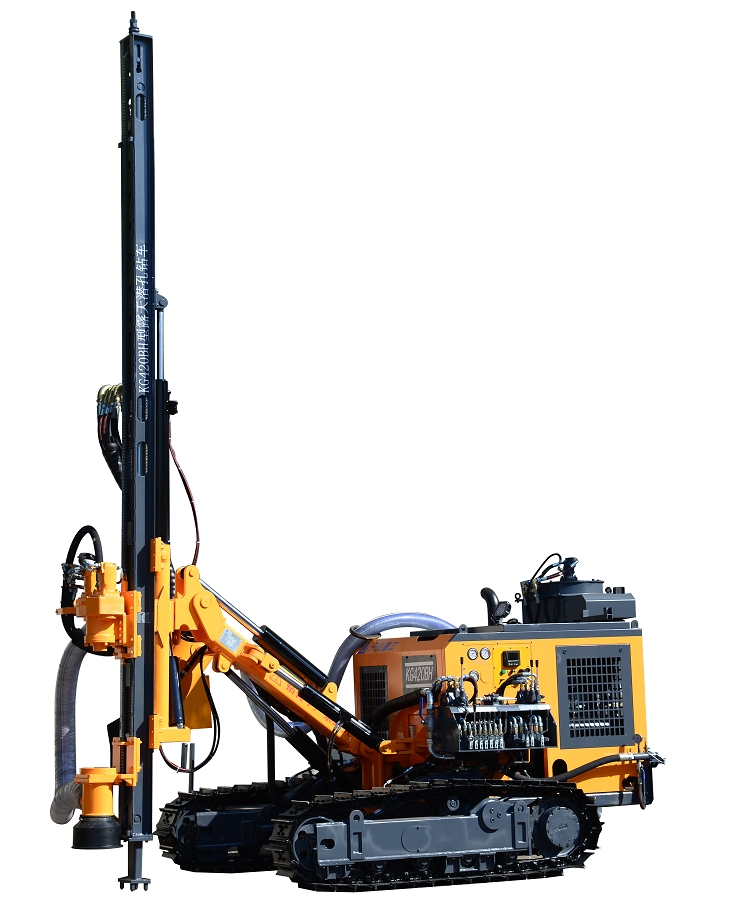

The KG320/KG320H down the hole drill rig blast drilling rig for open use is an improved device in compliance with national regulations on environmental protection. Equipped with the Yuchai engine (China III), the drill rig meets national standards for emissions and environment. The tramming motor of plunger piston and four-wheel drive improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position use. Meanwhile, the hydraulic system is improved, thereby proving increased system flow and rotary speed. The hydraulic cylinder has been optimized, thus making it more reliable. The guide rail is installed in an inclined way, making operations and observations easier. The thickened profile is used for the housing; and the additional ring makes handling and lifting convenient.
Brief Parameters
Drilling diameter: Φ80-105mm
Depth of economical drilling: 25m
Method of Feed: Oil cylinder-leaf chain
Feed stroke: 3820mm
Supporting power: YCD4R23T8-80(59KW/2400r/min）
Detailed Features
1 Easy Used Control Panel
2 High torque gyrator
3 Stable hydraulic system
4 Steel track adaptable to all terrains
Parameter
Parameters of KG320/320H DTH Open Pit Drill Rig Blast Drill Rig
| Model of drill rig | KG320 | KG320H |
| Weight of complete machine | 4500KG | 4700KG |
| Outer dimensions | 6050×2360×2650mm | 6050×2360×2700mm |
| Drilling hardness | f=6-20 |
| Drilling diameter | Φ80-105mm |
| Depth of economical drilling | 25m |
| Rotary speed | 0-140rpm |
| Rotary torque | 1850N·m |
| Lifting force | 20KN |
| Method of Feed | 油缸-板式链/Oil cylinder-leaf chain |
| Feed stroke | 3820mm |
| Travelling speed | 0-2.2km/h |
| Climbing capacity | ≤30° |
| Ground clearance | 465mm |
| Tilt angle of beam | Down:135°, up: 50°, total: 185° |
| Swing angle of beam | Left: 100°, right: 45°, total: 145° |
| Pitch angle of drill boom | Down: 50°, up: 25°, total: 75° |
| Swing angle of boom | Left: 44°, right: 45°, total: 89° |
| Compensation length of beam | 900mm |
| Supporting power | 玉柴动力/Yuchai power YCD4R23T8-80 (59KW/2400r/min) |
| Drilling rod | Φ64×3m |
| DTH hammer | M30 |
| Air consumption | 7-15m3/min |
| Maximum height of horizontal hole | 2750mm |
| Minimum height of horizontal hole | 350mm |
Applications
Recommended Air Compressors
Diesel engine portable screw air compressor:
Kaishan LGCY-12/10
Kaishan LGCY-13/13
Note: Air compressor selection subject to hole dimameter and air hose length
