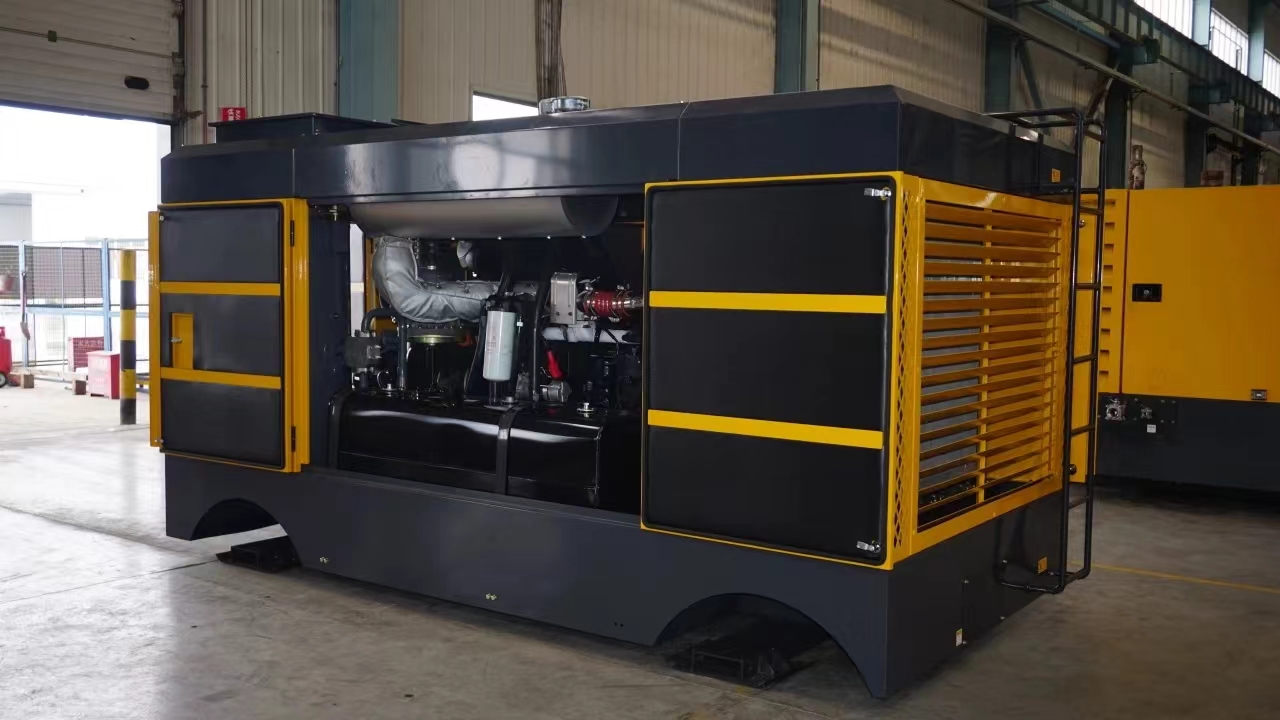

25bar BSF Air Compressor 294kw Diesel Screw Air Compressor Portable Compressor
Advanced product system
We have a great amount of experience in product design and manufacturing. The Product
Research Institute was established by depending on LiuGong Global R&D Center and is one of
the major research institutes at the LiuGong Global R&D Center and has a qualification of National Energy Efficiency Laboratory.
1. LGIR two-stage compression helical-lobe compressor
Two-stage compression;
The air end is equipped with a forced oil filling pump;Heavy-duty air end design;Excellent performance and upgraded energy efficiency.
2.Intelligent control system
Color display, IP65 protection rating, and high-precision synchronous control;
One key switches between high and low voltages, plus stepless speed regulation, and overall fuel consumption 10%-15% less than other conventional products.
3.Double air filters
Double filter elements of the Donaldson Air Filtration System ensure that the compressor sucks in cleaner air.
Air compressor Parameter
| BSF1100A-25D |
| COMPRESSOR |
|
| Freeair delivery [m3/min] | 26/31 |
| Pressure[Bar] | 22/25 |
| Compressor oil[L] | 110 |
| Element | LGIR |
| Dualtransformation | Dual |
| ENGINE |
| Supplier | Cummins |
| Type | L9CSIV394C |
| Power[kW] | 294 |
| Working andIdling speed [rpm | 1900/1400 |
| Number of cylinders | 6 |
| Displacement[J | 8.9 |
| Emission levels(Standard) | Stage IV |
| UNIT |
| Fuel capacity[L] | 650 |
| Carbamide capacity [L | 50 |
| Weight [t] | 4.8 |
| Outlet×quantity | G2x1&G3/4x1 |
Overall dimensions(Skid Mounted)[mm]
| 3800x1800x2050
|
| Noise[dB(A)] | 83±3 |
| OPTIONALENGINE |
| Supplier | Cummins |
| Type | L9PLUST3 |
| Power[kW] | 294 |
| Emission levels(Standard) | Stage Ill
|
