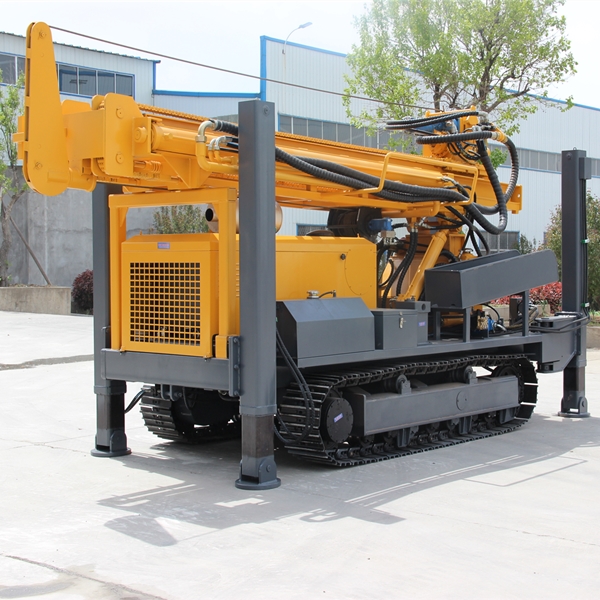

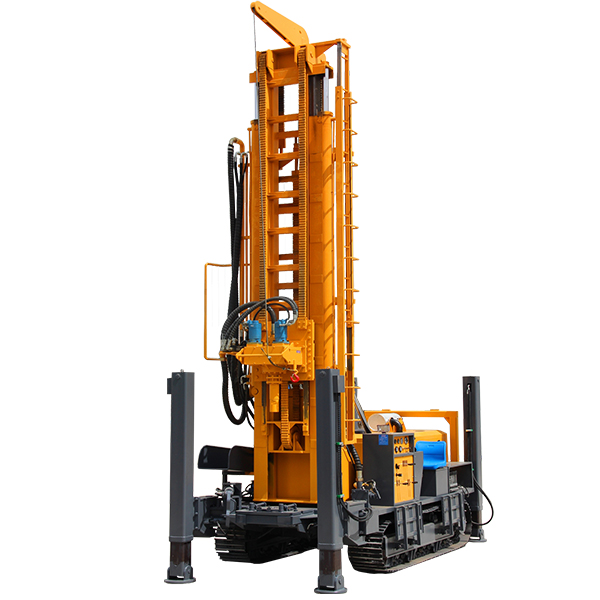

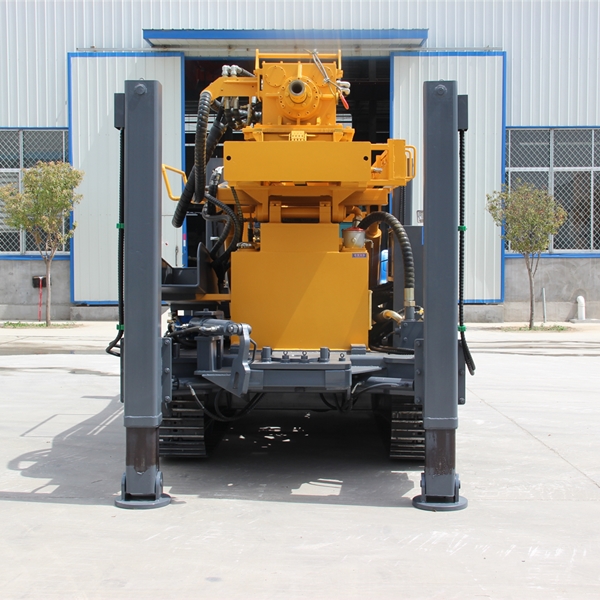

KW600C Deep Water Well Drill Rig
KW600C Deep water well drill rig, the depth can reach to 600 meters, and lifting force can be 30 tons, one time drilling depth can reach 6.6 meters, equipped with high pressure pump and multifunction generator for multifunction application, at the same time KW600C also equipped a winch, which make it easy for loading and unloading drill pipes. 132Kw Cummins 6 cylinder Diesel Engine supply strong power for drilling.
More Features of KW600C Deep Water Well Drill Rig
1. Equipped with 132KW Cummins 6 cylinder Diesel Engine supply strong power;
2. Patented design composite boom, double cylinder lift, long stroke, large tonnage
3. The main boom of each rig is equipped with a stopper to protect the cylinder;
4. Drilling machine chassis: professional excavator chassis ,durable, heavy bearing capacity, wide chain plate, less damage to hard road.
5.Parallel gearbox design, separate oil pump, sufficient power supply, reasonable distribution, unique design of hydraulic system, simple maintenance and low cost
6. The travel motor is equipped with reducer, durable and long service life;
7. Dust-reducing device: effectively reduce dust pollution, for potholes, tunnel construction.
8. Fast distribution valve: the speed of three gears up to 150-160 rpm, basically achieve the dual-use function of water and air
9. Each hydraulic hose is covered with soft management set to make the hose last longer.
10. The rig power is driven by the diesel engine, and the rig's walking, turning, propulsion, lifting, outriggers, and unloading rods are all controlled by hydraulic pressure.
11. The rig's walking is a crawler-type self-structure, which is easy to move. Its rubber crawler-type chassis makes it easy to walk in the city and the courtyard, and it is not easy to damage the ground.
12. High and Strong hydraulic legs allow quick and stable adjustment of the rig's body level for easy loading and unloading and shifting positions.
13. Dedicated wellhead setting provide a the certain center for drilling to ensure the vertical opening and positioning accuracy
14. Mechanical positioning of the carriage and frame improves the stability of the carriage
15. The pneumatic system has a custom oil injector that lubricates the impactor, effectively increasing the life of the impactor.
Parameter
Technical Parameter of KW600C Water well dril rig
| Model | KW600C |
| Drilling depth | 600m |
| Dia.hole | φ140-350mm |
| Advance Length one time | 6.6m |
| Working pressure | 1.7-3.5MPa |
| Air consumption | 17-42m3/min |
| Length of rod | 1.5m,2m,3m,6m |
| Dia. Of rod | φ76, φ89,φ102,φ114 |
| Lifting power | 30T |
| Rotation torque | 8500-11000N.m |
| Rotation Speed | 45-115r/min |
| Diesel Engine | Cummins Brand 6BTA5.9-C180 |
| Engine Power | 132Kw/2200rpm |
| Travelling speed | 0-2.5 Km/h |
| Climb capacity | 30° |
| Weight | 12000kgs |
| Dimension | 6000x2200x2850mm |
| Application | Complicated geological conditions:Rock,Mud,Sand etc. |
| Drilling Way | Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling |
| Dth Hammer | 4",5",6",8",10" Drill hammer or CIR110, 130, 150,170 |
Applications
If you need to buy the water well drill bits and the drill pipes, mud pump or air compressor, we also have those drill bit and drill pipes, mud pump and air compressor, you can buy all the things from us, we can supply you the one-stop service, it means, one click, for all the things you need.
Please consult our salesman for the mud pump, air compressor drill bit and more details.
Thanks for your view, and any questions please send us an email or leave a message to us.
