For the KG type dth surface rock drilling rig, the hydraulic system, drill boom parts and traveling unit are optimized and upgraded based on KY type rock drilling rig, so as to make the power (YC4D80) larger, gradeability stronger, hole drilling angle more proper, rotation and advance speed faster, service life of motor longer and the reliability better.

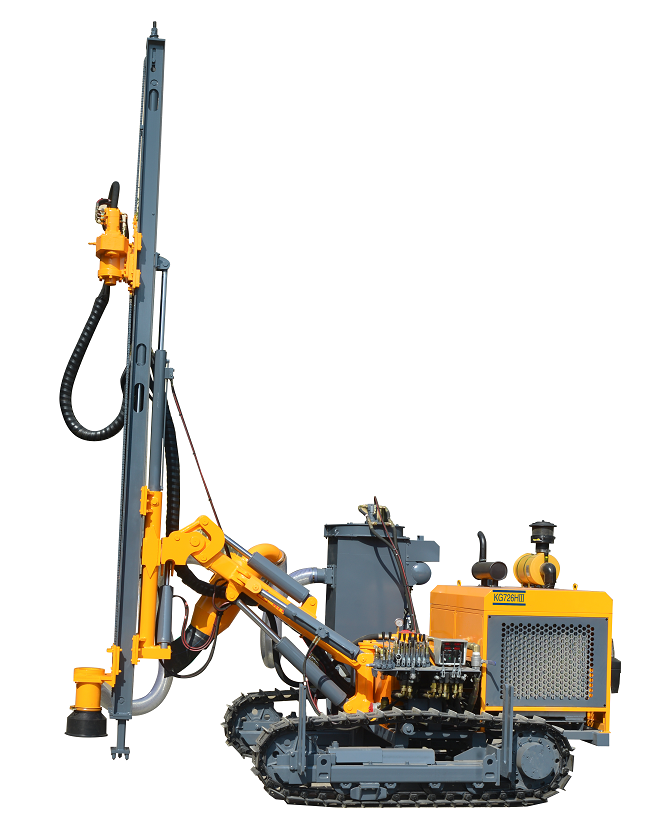

KG920B DTH Surface Drilling Rig
rock drilling rig, dth drilling rig, surface mining rig
open-pit dth drilling rig and dth drilling rig pictures, dth drilling machine, rock drilling equipments for mining and quarry
Parameter
Model | KG920A | KG920B | KG920D | KGH4 |
Rock Hardness | F=6-20 |
Hole Diameter | Ф80-115mm |
Economic Drill Depth | 25m |
|
Pressure | 1.0-1.7 Mpa |
Air Consumption | 9-13m3/Min |
Rotating Speed | 0-107r/Min |
Rotation Torque | 1400N.m |
Lifting Capacity | 15000N | 25000N |
Propulsion Type | Hydro-Cylinder-Chain |
Push Length | 3000mm |
Grade Ability | 30° |
Ground Clearance | 290mm |
Walking Speed | 0-1.8km/h |
Carriage Rising Angles | Blow 135,Elevation5, Total 145 |
|
Carriage Swing Angle | Left100,Righ45,Total 145 |
|
Drill Boom Pitch Angle | Blow 50,Elevation 25,Total 75 |
|
Drill Boom Pitch Swing Angle | Left 44,Right 45,Total 89 |
Carriage Compensation | 900mm |
Drill Rod | Φ64/Φ76*3000mm |
Diesel Engine | YC2108 | YC4D80 | Electric motor | YC4D80 |
Power | 33KW 2200r/Min | 58KW 2400r/min | 30KW | 58KW |
Overall Dimension(L*W*H) | 4400×2200×2050(Mm) | 5600X2700X2500mm |
Total Weight | 4000kg | 4200kg | 4000kg | 5000kg |
KG920 comparing with KY125
Model | KG920 | KY125 | Comparison |
Traveling unit | Motor + slowdown structure | Direct-connected ball motor | Reduce the pressure of motor and enhance the service life of motor |
Travelling pressure | 11Mpa | 14-16 Mpa |
Drill boom parts | New-type drill boom |
| Drill horizontal and vertical hole at the same time and the height of horizontal hole is lower |
Hydraulic system | 30 pump, large-drift-diameter new valve group, new splite-flow valve, adopt new-type joint | 19.2 Pump | Increase flow, reduce resistance, neat appearance |
Air circuit system | Piston-type impact air valve | Ball valve | Good controllability |
Rotary speed | 83r/min (Diesel oil 1700r/min)
107r/min (Diesel oil 2200r/min) | 55r/min | Increase 50% |
Propel Speed | 450mm/s | 336mm/s | Increase 33% |
Recommended drill tools
| Drill bit | 90mm | 105mm | 115mm |
Drill rod | Φ64x3000mm | Φ64x3000mm | Φ76x3000mm |
Hammer | CW930 | HD45S | HD45A |
Applications
KG series is revised on the basis of KY series, which maintains the simple structure and stable performance of KY series and upgrades the hydraulic system, travelling unit, gyrator, power, gas path system, drill arm component and rack unit, enjoying increased power, stronger climbing ability, more reasonable drilling angle, faster rotation and advancement speed, longer-term motor service life and better reliability. This drill is widely used in blasthole drilling of large- and medium-sized open-pit surface mining, water conservancy, power station and road paving projects. Applicable rock hardness: F=6-20, drilling diameter: 80-165mm, economic drilling depth: 12-25m.
