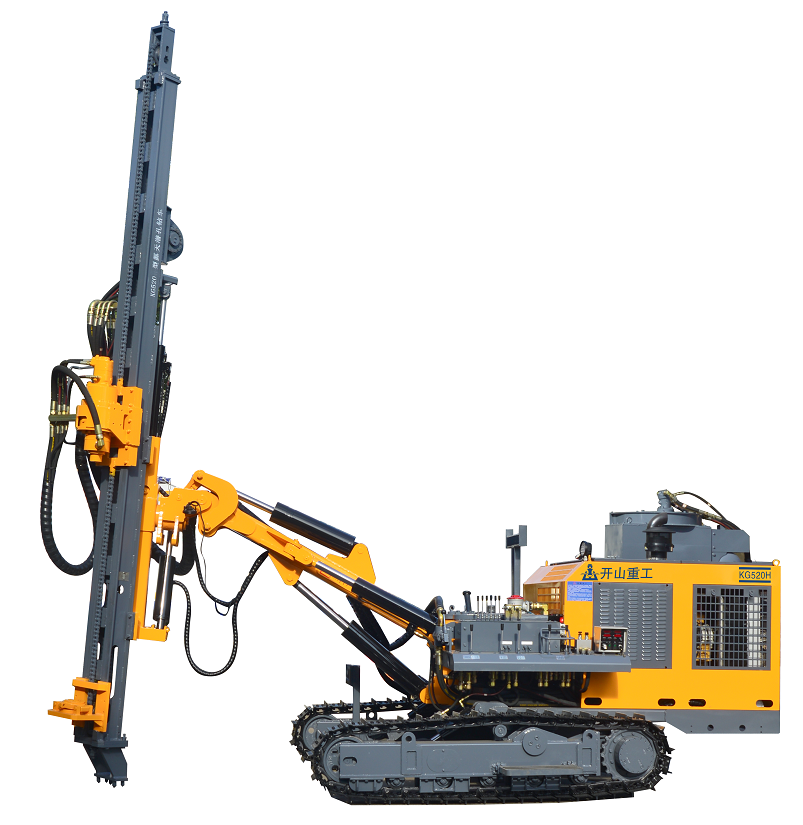

The KG520/KG520H down the hole drill rig is designed for large and medium-sized quarries and contractors. The drill rig features a folding frame track and four wheel drive. The track leveling and plunger piston walking motor improve the working pressure and climbing capacity of the unit. The expanded pitch and lifting-arm hydraulic cylinder allow the equipment to meet limiting position requirements. The rotary torque and revolving speed are optimized and a propulsion motor and chain are used to raise the lifting force and reliability. The dust collector attached is enlarged to increase capacity. A thickened profile folder is used for the housing, thus improving its level of intensity and rigidity. The additional ring makes handling and lifting more convenient. We are confident that the drill can stand up to any task, including quarrying/mining and wall control.
Brief parameter of KG520/KG520H DTH Drill Rig Mining Blast Drilling Rig
Drilling diameter: Φ105-152mm
Depth of economical drilling: 25m
Method of Feed: Motor-roller chain
Feed stroke: 4150mm
Supporting power: /Yuchai 4DK100-T304(73KW/2200r/min)
More Detailed Features of KG520/KG520H DTH Drill Rig Mining Blast Drilling Rig
Parameter
Technical Parameters
Model of drill rig | KG520 | KG520H |
Weight of complete machine | 6500KG | 7000KG |
Outer dimensions | 6800×2200×2850mm | 6800×2450×2850mm |
Drilling Hardness | f=6-20 |
Drilling diameter | Φ105-152mm |
Depth of economical drilling | 25m |
Rotary speed | 0-100rpm |
Rotary torque | 4000N·m |
Lifting force | 25KN |
Method of Feed | Motor-roller chain |
Feed strock | 4150mm |
Travelling speed | 0-4km/h |
Climbing capacity | ≤30° |
Ground clearance | 440mm |
Tilt angle of boom | Down: 135°, up: 50°, total: 185° |
Swing angle of boom | Left: 50°, right: 50°, total: 100° |
Pitch angle of drill boom | Down: 50°, up: 25°, total: 75° |
Swing angle of drill boom | Left: 45°, right: 45°, total: 90° |
Leveling angle of track | ±10° |
Compensation length of beam | 900mm |
Supporting power | Yuchai 4DK100-T304(73KW/2200r/min)Yuchai 4DK100-T304(73KW/2200r/min) |
DTH hammer | K40 |
Drilling rod | Φ76×3m or Φ89×3m |
Air consumption | 15-22m3/min |
Maximum height of horizontal hole | 3500mm |
Minimum height of horizontal hole | 350mm |
