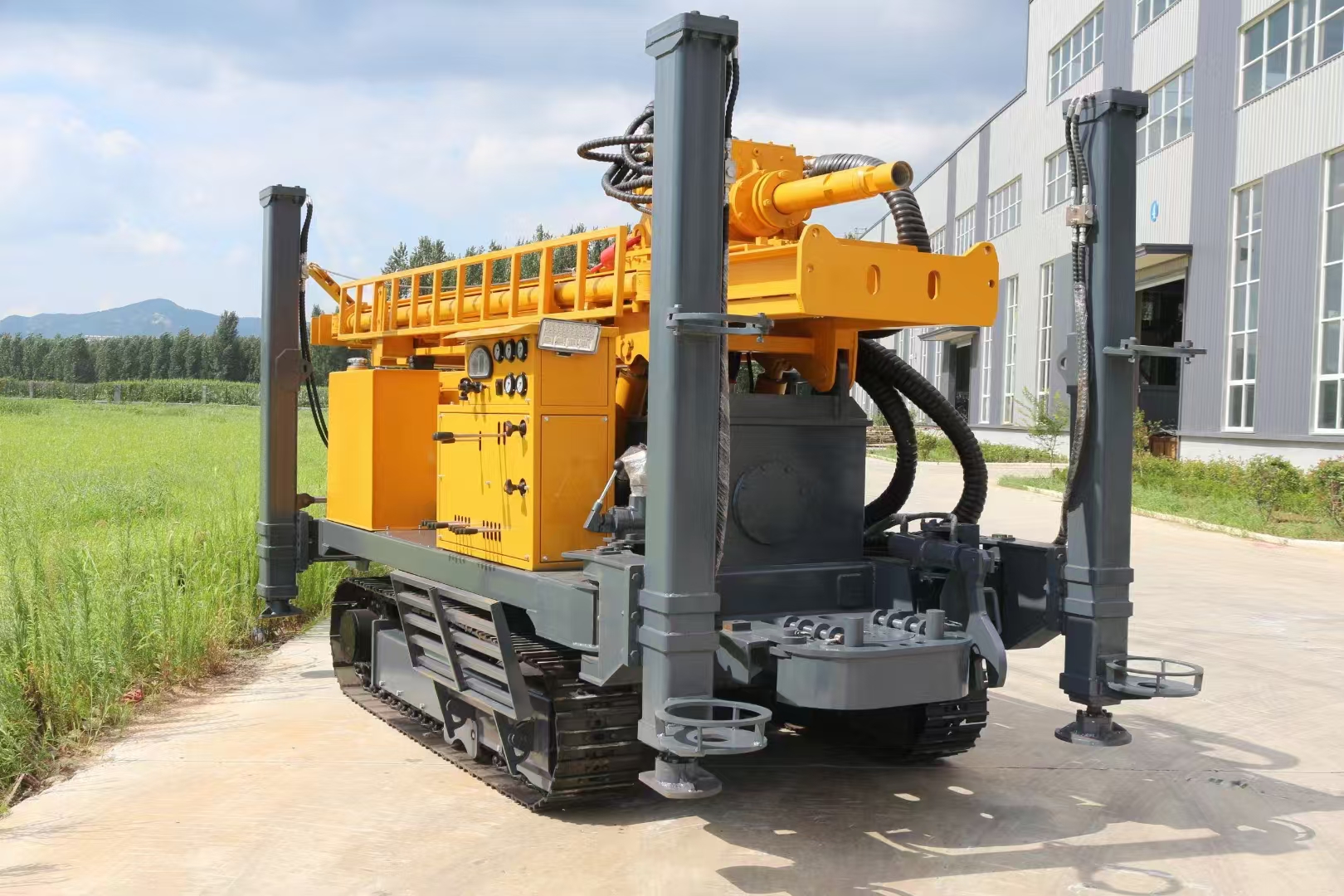

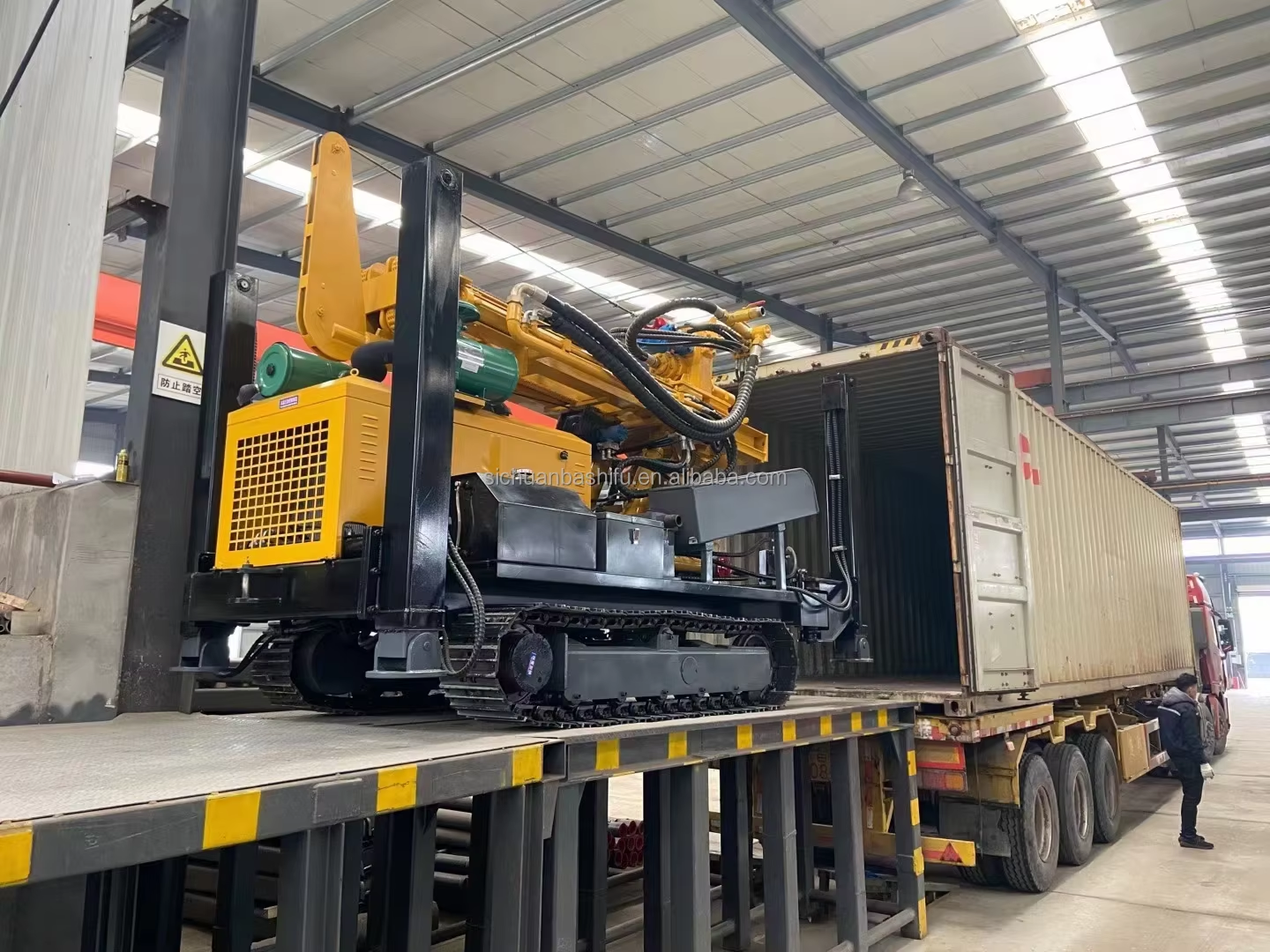

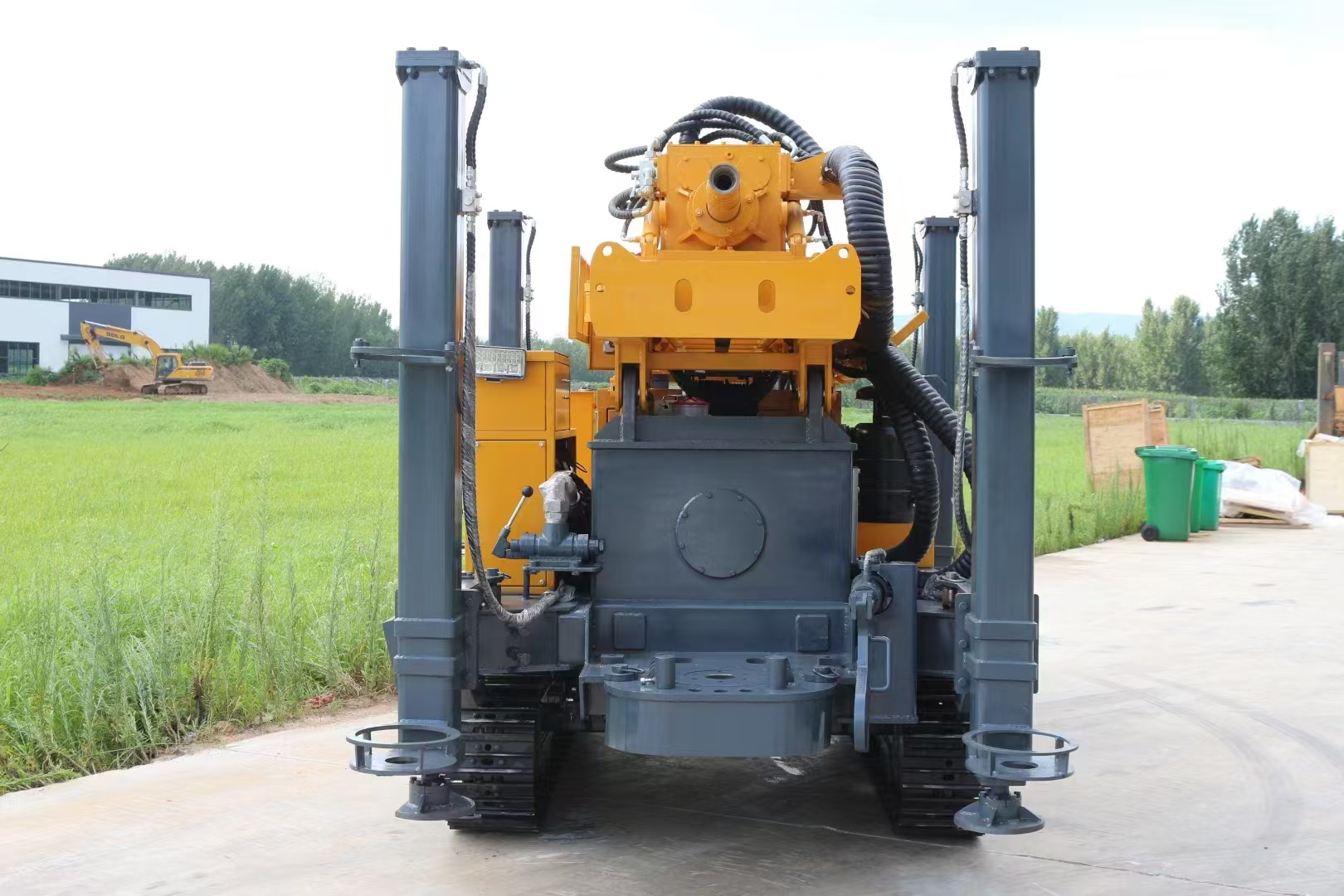

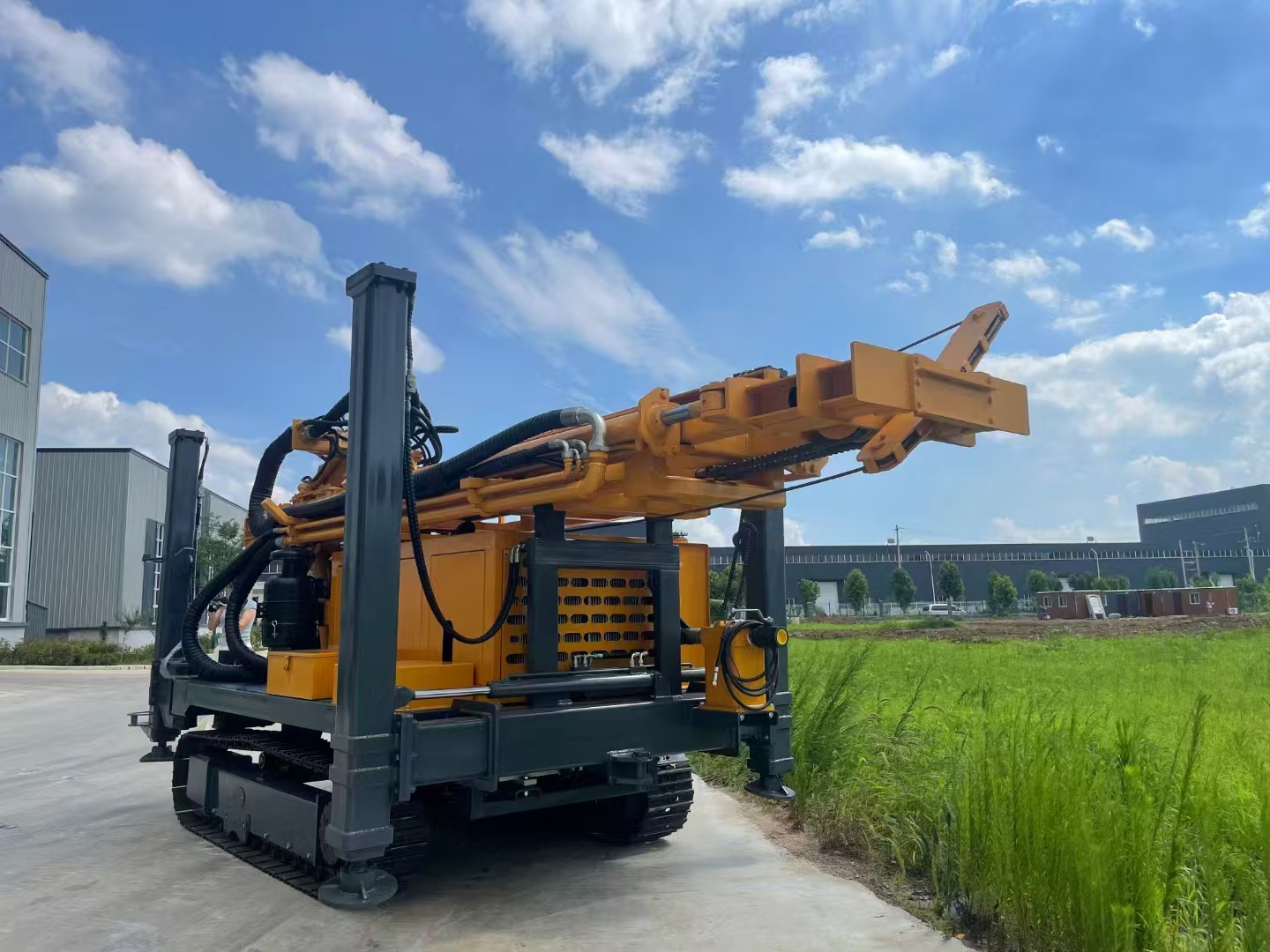

BSF350 Water well drilling rig
BSF350 water well drilling rig features:
1. Double motor drive rotation, large torque, small size, adjustable speed.
2. Adopt triple gear pump to ensure the oil pump is durable and reliable.
3. Combined platform, beautiful design, equipped with pedals, easy to operate.
4. Equipped with clutch and auxiliary radiator, suitable for areas with high altitude and cold climate.
5. German technology walking motor; high torque and climbing ability, low failure rate.
6. Dual systems can be installed:
-Pneumatic system with air compressor
-Mud pump system with mud pump.
Technical Parameters |
|
|
|
Model of drill rig | BSF350 |
Drilling depth | 350m |
The hole diameter | Φ105-350mm |
Using air pressure | 1.2-3.5mpa |
Air consumption | 16-55m3/min |
One-time advance length | 6.6m |
Drill pipe length | 3.0m/6m |
Drill pipe diameter | 89/102mm |
Rig lifting force | 16T |
Fast feeding speed | 55m/min |
Rapid rise speed | 30m/min |
Swing speed | 80/160r/min |
Swing torque | 7000/3500Nm |
The penetration efficiency | 10-35m/h |
Hoist lifting force | 1.1T/2.5T |
Supporting power | Yuchai 91KW(Cummins 93kw optional） |
Walking speed | 2.5km/h |
Climbing angles | 21° |
High leg stoke | 1.5m |
Width of loading | 2600mm |
Dimension(L*W*H) | 5780*1800*2400mm |
The weight | 7.5T |
With hammer | Medium and high wind pressure series |
