18bar BSF Air Compressor 162kw Diesel Screw Air Compressor Portable Compressor
Advanced product system
We have a great amount of experience in product design and manufacturing. The Product
Research Institute was established by depending on LiuGong Global R&D Center and is one of
the major research institutes at the LiuGong Global R&D Center and has a qualification of National Energy Efficiency Laboratory.

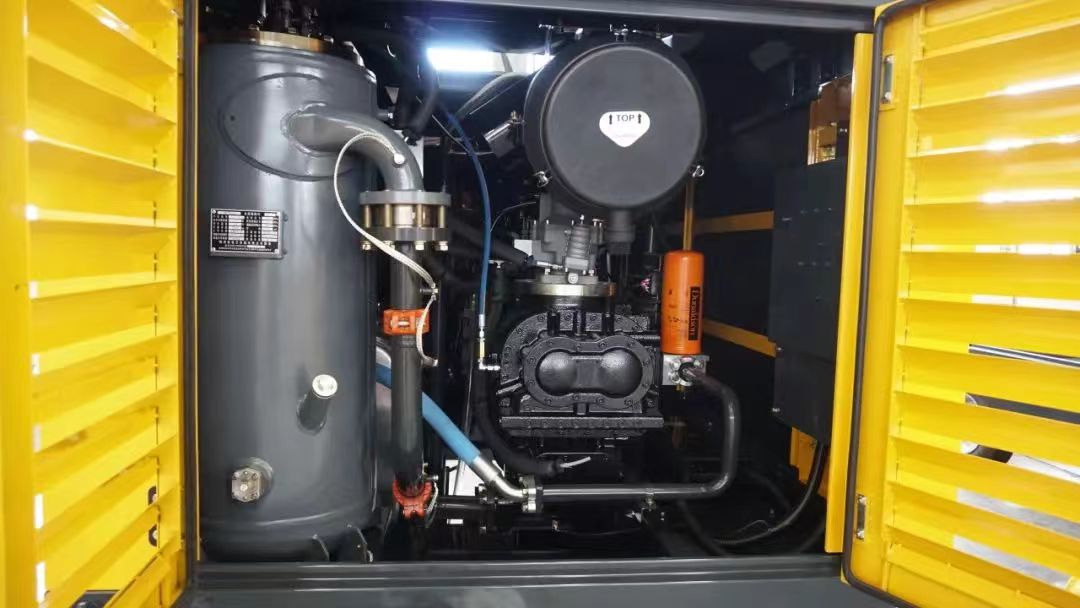

1. LGIR two-stage compression helical-lobe compressor
Two-stage compression;
The air end is equipped with a forced oil filling pump;Heavy-duty air end design;Excellent performance and upgraded energy efficiency.
2.Intelligent control system
Color display, IP65 protection rating, and high-precision synchronous control;
One key switches between high and low voltages, plus stepless speed regulation, and overall fuel consumption 10%-15% less than other conventional products.
3.Double air filters
Double filter elements of the Donaldson Air Filtration System ensure that the compressor sucks in cleaner air.
Air compressor Parameter
| BSF600A-18D |
| COMPRESSOR |
|
| Freeair delivery [m3/min] | 17 |
| Pressure[Bar] | 18 |
| Compressor oil[L] | 35 |
| Element | LGIR |
| Dualtransformation | Single |
| ENGINE |
| Supplier | Cummins |
| Type | B7 |
| Power[kW] | 173 |
| Working andIdling speed [rpm | 2000/1300 |
| Number of cylinders | 6 |
| Displacement[J | 6.79 |
| Emission levels(Standard) | Stage IV |
| UNIT |
| Fuel capacity[L] | 240 |
| Carbamide capacity [L | 25 |
| Weight [t] | 2.4 |
| Outlet×quantity | G1 1/2x1&G3/4x1 |
| Overall dimensions(tires)[mm] | 4100x2000x2050 |
| Tiresize×quantity | 215-75R16C/2 |
| Noise[dB(A)] | 82±3 |
| OPTIONALENGINE |
| Supplier | Cummins |
| Type | B7-T3 |
| Power[kW] | 169 |
| Emission levels(Standard) | Stage Ill
|
